Automatic XRF Hydraulic Press 30 Ton
Automatic Pellet Ejection
- 0 - 30T pressure
- Boric acid / Steel ring / Plastic ring / Aluminum Cup
- Programmable pressure & dwell time
- Built-in XRF sample die for high-quality pellets
- Digital control panel
- LCD screen for easy monitoring & control
- Automatic demoulding for efficient pellet removal
Looking for more information?
Select an option below to request a quote, obtain more information, or download a catalogue.
Automatic Hydraulic Lab Press for FTIR & XRF Pellet Preparation
The 30 T Automatic XRF Hydraulic Press from Imperial Instruments is a programmable, benchtop hydraulic sample preparation system designed specifically for X-Ray Fluorescence (XRF) spectroscopy. Engineered to produce uniform and high-density analytical pellets, this dedicated XRF pellet press automates the pressing cycle, ensuring consistent sample quality and repeatability for rapid elemental analysis.
Ideal for environmental, geological, materials science, cement, metal, ceramic, and industrial QA/QC laboratories, the 30 T Automatic XRF Press improves throughput, reduces operator variability, and delivers reliable results with minimal manual intervention.
Supports Boric acid, Steel ring, Plastic ring and Aluminum Cups.
Autotomatic Presses

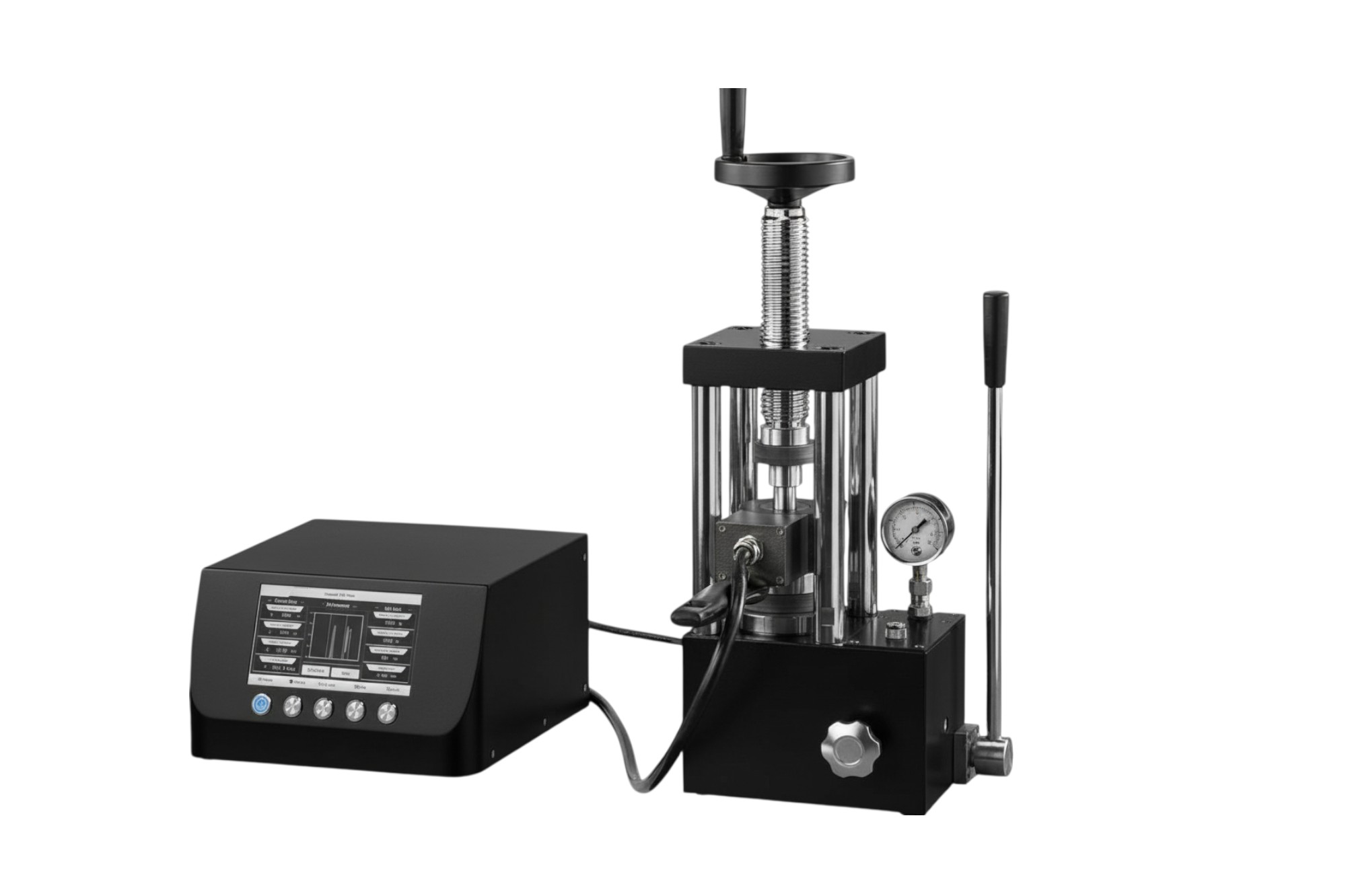

Manual Press + Heatable Die Sets
Optimize cement production
CIP - Cold Isostatic Press
Optimize ore processing
Specification
Pressure range
0.01 -30 T
Pressure display accuracy
0.01 Tons
Display panel
7” touch screen panel
Pressurization process
20-stage program pressurization, can display pressure graph
Pressure Conversion
Automatically calculates the pressure the sample is subjected to based on the sample size.
Metal button /key
Sliver-plated contacts, with a service life of over 100,000 cycles.
Mold size
40mm or 32mm built in mold
Mold type
Boric acid / Steel ring / Plastic ring / Aluminum Cup
Mold material
Stainless steel 440C
Demolding method
The upper plate cantilever structure automatically demoulds for easier operation.
Pressure safety
The equipment has automatic pressure overload protection
Curve graph
Can display each operation curve graph and support U disk download Excel file
Remote control
A computer is required to analyze, compare, modify, and export data.
Voltage
110V / 220V
Power
500W
Accessories

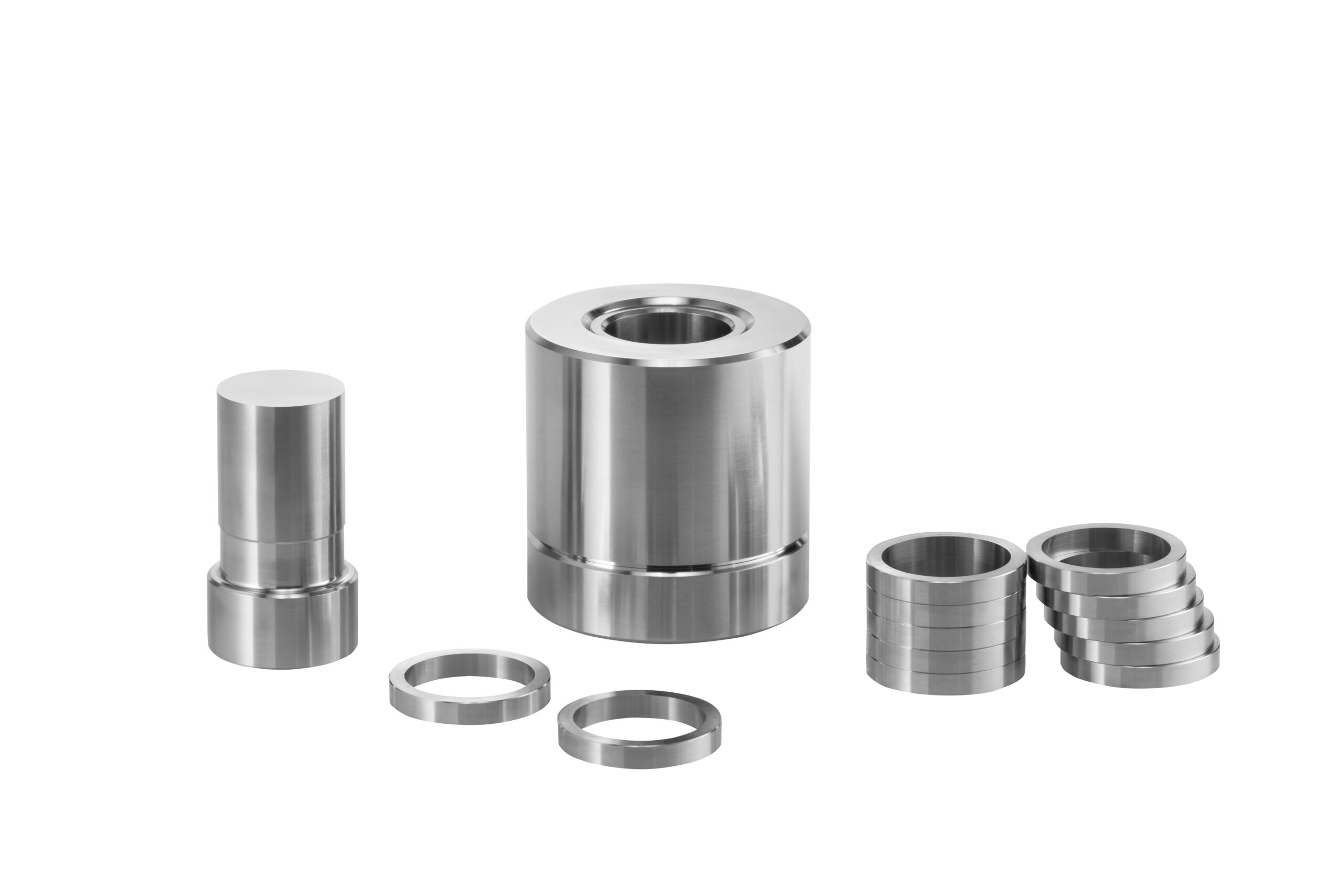

Ring Pressing Pellet Die
For XRF
Designed for XRF sample preparation where ring-shaped pellets are required, these ring die sets produce uniform, reproducible ring pellets that fit XRF spectrometer holders and automated systems. Engineered with precision tolerances and smooth pressing surfaces, they ensure consistent compaction, optimal density, and reliable analytical results for X-ray fluorescence (XRF) applications. Ideal for high-throughput labs and routine XRF workflows, these die sets support accurate elemental analysis and improved signal stability by forming perfectly defined ring samples for mineral, soil, cement, environmental, and industrial material testing

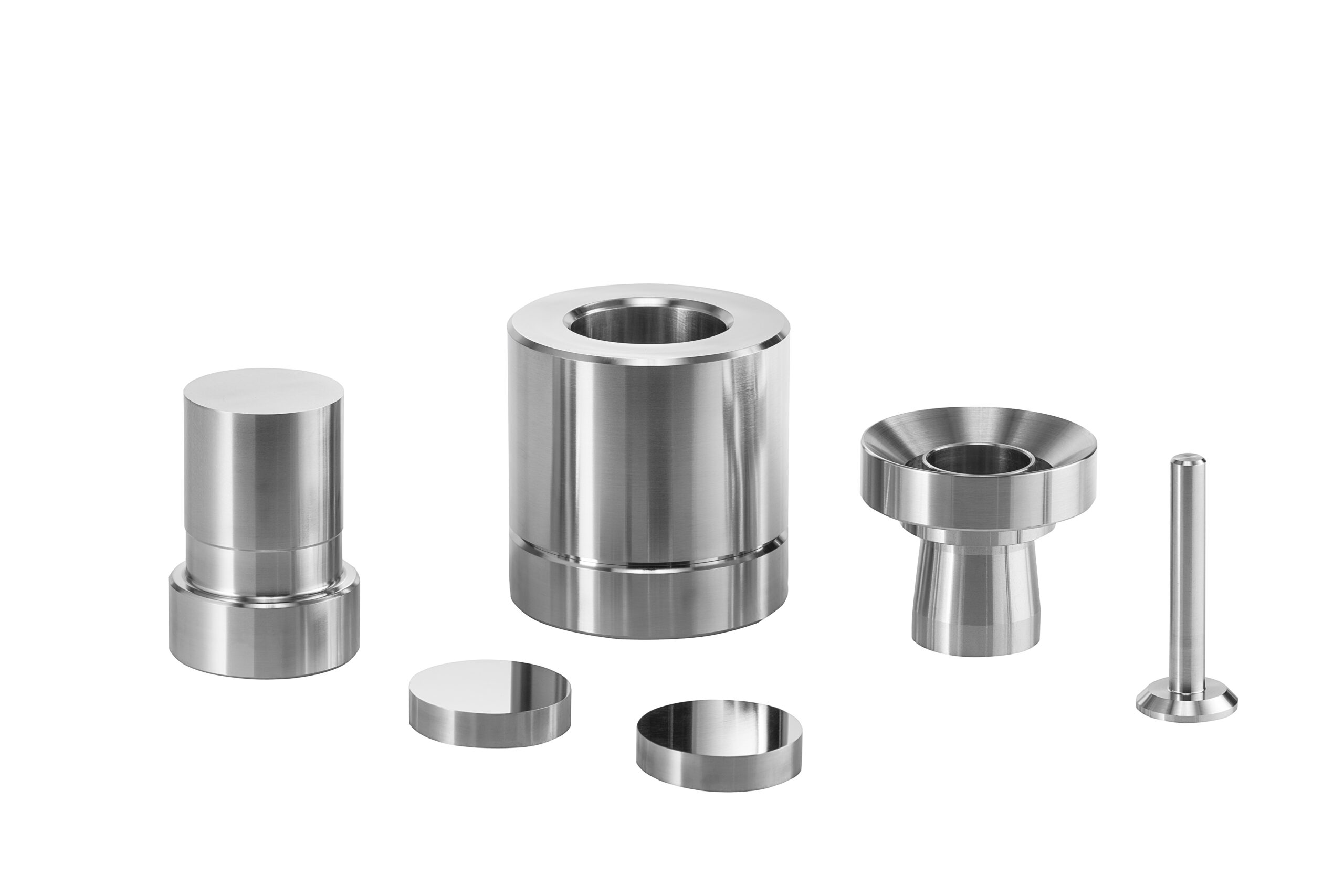

Boric Acid XRF Pellet Pressing Die Set
For XRF
Designed for XRF sample preparation using boric acid as a binder/matrix, this boric acid XRF pellet pressing die set produces high-quality pressed pellets for accurate X-ray fluorescence analysis. In many XRF workflows, boric acid powder is mixed with finely ground sample to act as a binding and support matrix that improves pellet strength and homogeneity without interfering with elemental detection. Precision-engineered with polished pressing surfaces, the die set ensures uniform pellet compaction and reliable analytical results, making it ideal for routine XRF testing in geology, environmental, cement, soil, and industrial material applications.

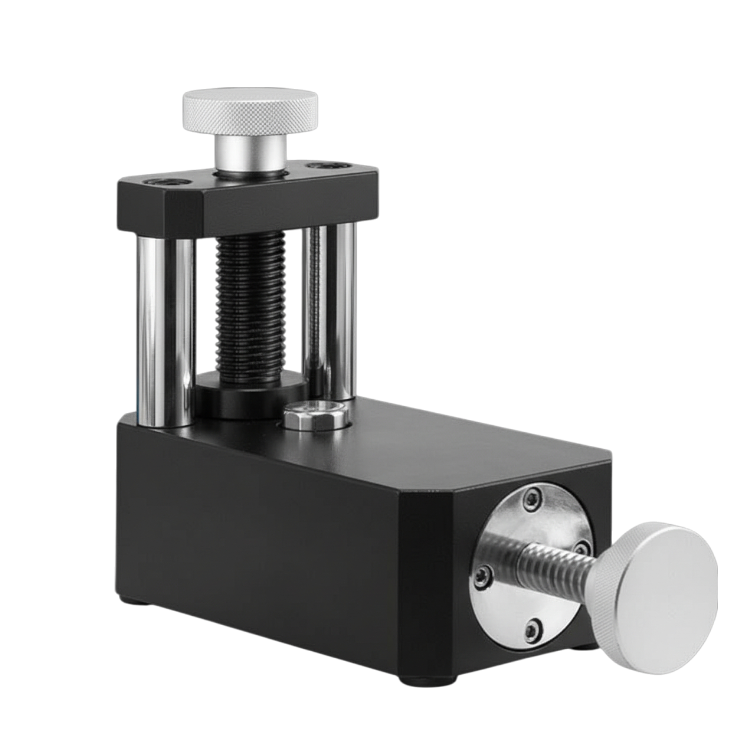

Precision Power in a Portable Package
A compact, benchtop hydraulic press engineered for preparing high-quality pellets from powders, especially for KBr-based pellets used in FTIR or solid-sample prep for XRF, XRD, or other analyses. This press delivers up to 2 tons of pressure, producing consistent 7 mm-diameter pellets via a 7 mm die assembly. The integrated pressure gauge ensures reproducible pressure for repeatable results, while the small footprint and lightweight design make it ideal for cramped labs or glove-box use. With simple operation and low maintenance, this press is a cost-effective solution when you need reliable pelletization for quantitative and qualitative analytical work.
